Keysight
直流电源
Product Detail

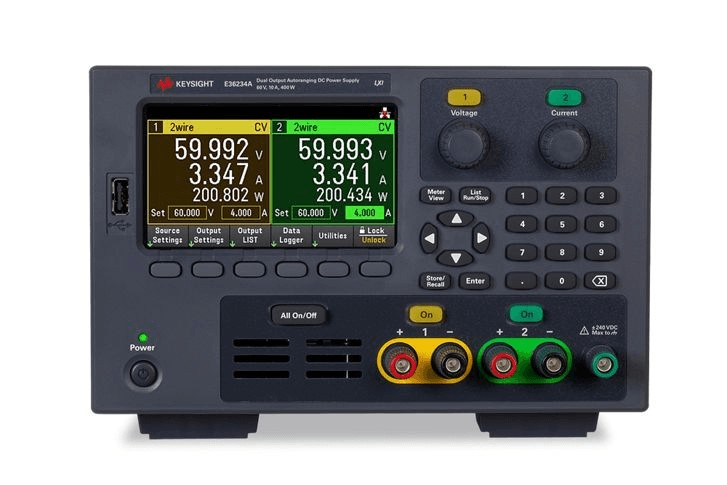

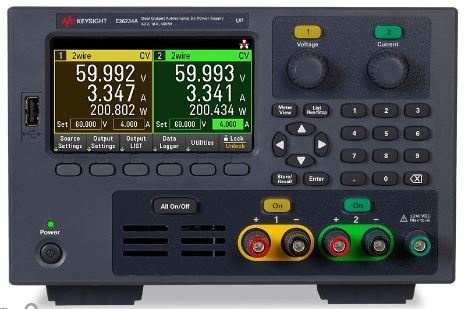

E36234A 自动量程双路输出Power Supply, 60 V, 10 A, 400 W
型号：E36234A分类：直流电源
Output 1: 200W, 0 to 60 V, 0 to 10 A
Output 2: 200W, 0 to 60 V, 0 to 10 A
Normal Mode Voltage: <350 µVrms / 3.5 mV p-p
Voltage
0.03% + 8 mV
Current
0.1% + 3 mA
Output 1
200W, 0 to 60 V, 0 to 10 A
Output 2
200W, 0 to 60 V, 0 to 10 A
Quick View
关键参数速览
Voltage: 0.03% + 8 mV
Current: 0.1% + 3 mA
Voltage: 0.03% + 8 mV
Current: 0.1% + 3 mA
Specifications
详细规格
Output 1
200W, 0 to 60 V, 0 to 10 A
Output 2
200W, 0 to 60 V, 0 to 10 A
Voltage
0.03% + 8 mV
Current
0.1% + 3 mA
Normal Mode Voltage
<350 µVrms / 3.5 mV p-p
Normal-mode current
<1 mA rms
Low Range Current, <50 mA
0.25% + 80 uA
Highlights
产品亮点
Keysight
Keysight E36200 Series Autoranging DC Power Supplies
Voltage: 0.03% + 8 mV
Current: 0.1% + 3 mA
Output 1: 200W, 0 to 60 V, 0 to 10 A
Output 2: 200W, 0 to 60 V, 0 to 10 A
