Keysight
直流电源
Product Detail

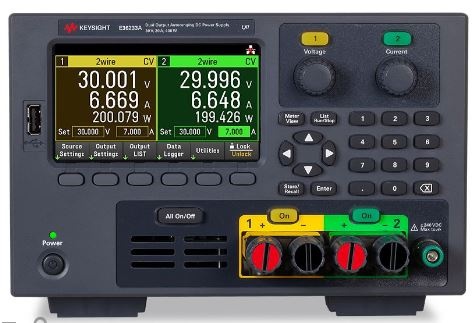

E36233A 400 W 自动量程双路输出Power Supply, 30 V, 20 A
型号：E36233A分类：直流电源
Output 1: 200 W, 0 to 30 V, 0 to 20 A
Output 2: 200 W, 0 to 30 V, 0 to 20 A
Normal Mode Voltage: <350 µVrms / 4.5 mV p-p
Voltage
0.03% + 4 mV
Current
0.1% + 6 mA
Output 1
200 W, 0 to 30 V, 0 to 20 A
Output 2
200 W, 0 to 30 V, 0 to 20 A
Quick View
关键参数速览
Voltage: 0.03% + 4 mV
Current: 0.1% + 6 mA
Voltage: 0.03% + 4 mV
Current: 0.1% + 6 mA
Specifications
详细规格
Output 1
200 W, 0 to 30 V, 0 to 20 A
Output 2
200 W, 0 to 30 V, 0 to 20 A
Voltage
0.03% + 4 mV
Current
0.1% + 6 mA
Normal Mode Voltage
<350 µVrms / 4.5 mV p-p
Normal-mode current
<1 mA rms
Low Range Current, 100 mA
0.25% + 160 uA
Highlights
产品亮点
Keysight
Keysight E36200 Series Autoranging DC Power Supplies
Voltage: 0.03% + 4 mV
Current: 0.1% + 6 mA
Output 1: 200 W, 0 to 30 V, 0 to 20 A
Output 2: 200 W, 0 to 30 V, 0 to 20 A
